750t hot press for bamboo furniture board

FOB Reference Price:Get Latest Price
$42,450.00 - $56,600.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot Press Machine
Place of Origin:
Shandong, China
Brand Name:
guosen
Model Number:
GSB1
Voltage:
220V/380V
Power(W):
22KW
Dimension(L*W*H):
Accoding
Weight:
32t
Certification:
CE ISO9001
Name:
bamboo floor machine
Application:
bamboo board machine
Function:
press for bamboo board
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
12 Set/Sets per Year
Packaging & Delivery
Packaging Details
wood box
Port
qingdao
Lead Time :
60days
Product Description

Product Application

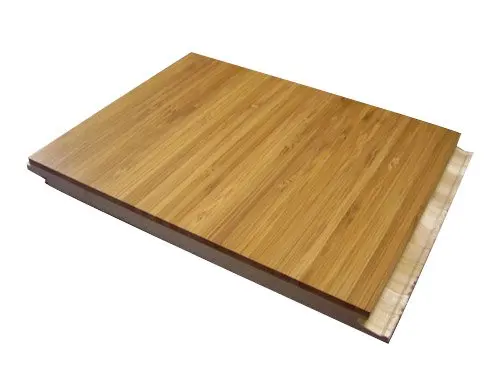

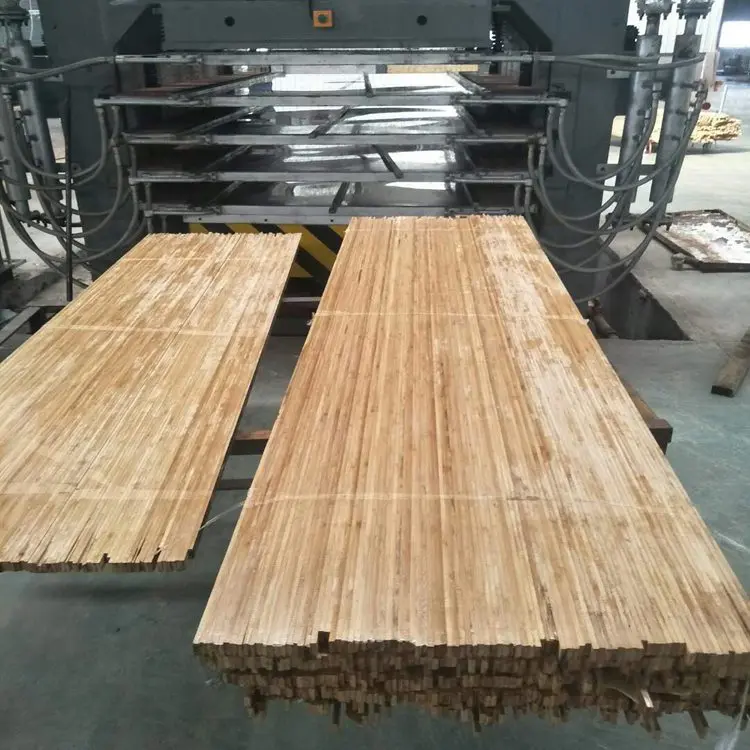

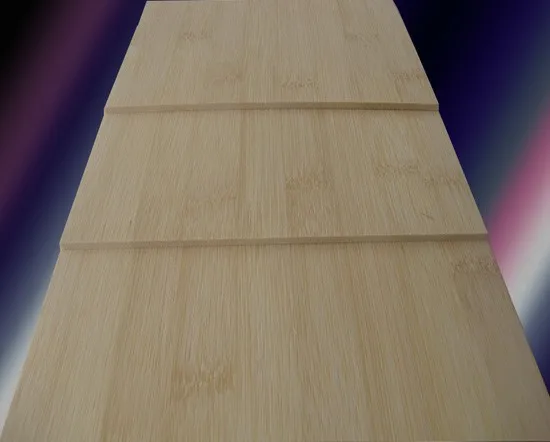

750t hot press machine apply to press bamboo furniture board with 1220x2440mm or other size,also can press bamboo flooring board.

SPECIFICATIONS FOR 7500KN hot press

Engine
Model
SDR148*270-75/15(4)
Main pressure
KN
7500
Side pressure
KN
1500

Main performance parameters
Size of hot platen
mm
1480*2700mm
Opening daylight
mm
140
Diameter of cylinders
mm
250

Hydraulic system
Hydraulic system
MPa
26
Motor Power
kw
20.5
No. of cylinders
pieces
6

Main Features

1. The hot press applies PLC controller to make operation flexible and reliable.

2. The frame of press uses high quality metal panel with Gantry framework, big tensile strength,good stiffness and stability,installation,maintaince and adjusting conveniently,good resistance for partial load,and high accuracy retentivity.

3. Hot platen:drill pipe in the solid board.The gallery for hot water in the heat plate is equidistant.

4. There is insulation board between heat plate and upper beam,moving beam to reduce heat energy loos.
